Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty business days.
It has a good Chinese and English man-machine dialogue interface to realize full-featured automatic control. The LCD screen displays the working status of the machine in real time, and the precise monitoring group is running in a stable state. The light touch panel is well sealed, waterproof, dust proof, corrosion-resistant, and the keys have a long life.
| Model | Product name | PQ-ZL120S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 92.5 | |
| Cooling Capacity | Kcal/H | 351740 |
| KW | 409 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 72 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 85 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 16 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 82 | |
| Water Pipe Diameter(Inch) | PT4″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 54 | |
| Inlet/Outlet (G) | PT4″ | |
| Circulating Pump | PowerConsumption(KW) | 7.5 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 2250 |
| Dimension（CM） | 320*90*180 |

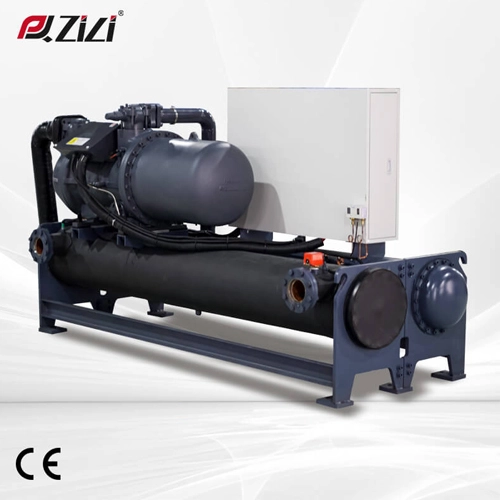

120HP screw chiller unit, various models are available.
Cooling capacity up to 409KW.
Large air volume and fast heat dissipation.
PLC touch screen display.
The screw chiller has the characteristics of forced gas delivery, that is, the gas delivery volume is almost not affected by the pressure. Maintain high efficiency over a wide operating range.
The rod compressor has no reciprocating mass inertia force and good dynamic balance performance.
It adopts microcomputer control system, which has powerful functions of safety protection, communication, fault judgment and automatic adaptation.
The 120HP water-cooled screw machine uses water as the refrigerant medium, which is more environmentally friendly and energy-saving than air-cooled chillers, and is in line with the development trend of energy conservation and environmental protection.
