Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty business days.
Generally installed on the roof or outdoors, no special air-conditioning room is required. There are no cooling towers, cooling water pumps, cooling water piping systems, etc. The system is simple and easy to use. It is commonly used in different types of buildings such as hotels, shopping malls, hospitals, office buildings, factories, etc., to provide continuous and comfortable protection for people's work and life.
| Model | Product name | PQ-ZL150A(120Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 142.5 |
| Cooling Capacity | Kcal/H | 375000 |
| KW | 420 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 113.7 | |
| Draught Fans | Air Volume（M³/H) | 150000 |
| Power（KW） | 1.7*8 | |
| Dimension Fans（MM） | 900*8 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 650 | |
| Inlet/Outlet (DN) | 125 | |
| Circulating Pump | Power(KW) | 11 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 3100 |
| Dimension（CM） | 4500*2200*2300 |

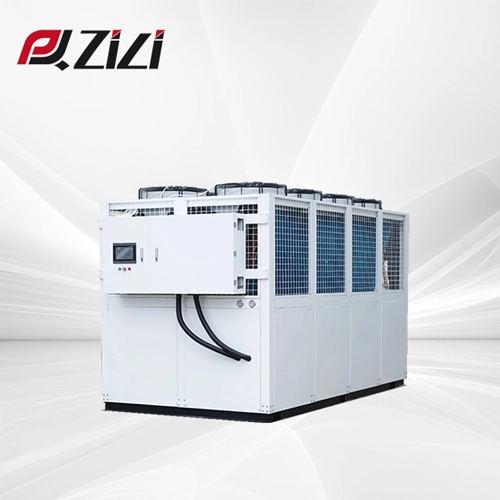

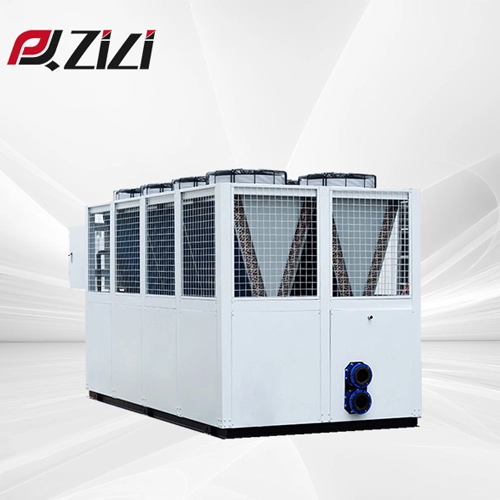

Air water cooled 150HP 120 ton central chiller.
Cooling capacity up to 375000 Kcal/H.
Flow switch.
High and low pressure oil gauge.
Water pressure controller.
Built-in 6 big protection functions.
According to the needs of customers, propose corresponding customized solutions and quotations.
The electrical part adopts “Schneider” products to ensure that the machine works stably and has a long service life.
The suppliers of refrigeration accessories and control components are selected from world-famous manufacturers, coupled with the most advanced intelligent control schemes, making the unit efficient, energy-saving, stable and reliable.
In addition to stereotyped products, the company can also customize various special chillers and heat recovery units according to customer requirements.
