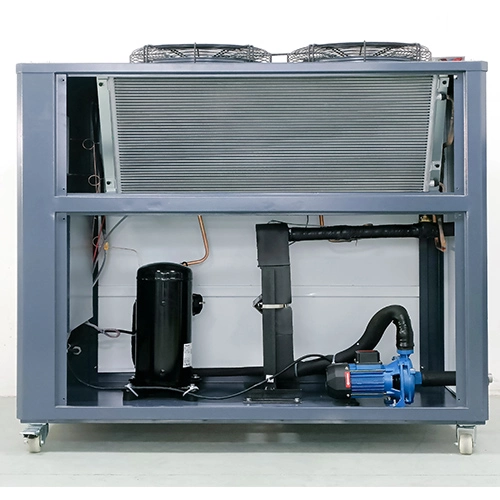

The 25HP plate chiller heat exchanger is a compact and efficient cooling apparatus engineered for precise temperature regulation in industrial applications. The system features a compressor capable of managing 25 horsepower and a highly efficient plate heat exchanger, ensuring rapid heat transfer and energy conservation. This chiller is ideal for sectors such as plastics, electronics, and chemicals, where consistent temperature performance is essential. The modular design facilitates straightforward setup and continuous maintenance, while its compact dimensions conserve floor space. A 25HP plate chiller represents a robust and economical solution for the most exigent cooling requirements.
| Model | Product name | PQ-ZL25A(20Tons) |
| Power | Voltage | 3N/440V/60HZ |
| Power Input | KW | 22 |
| Cooling Capacity | Kcal/H | 62500 |
| KW | 70.5 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Hermetic Scroll Type |
| Brand | Inward | |
| Power(KW) | 9.37*2 | |
| Draught Fans | Air Volume（M³/H) | 26640 |
| Power（KW） | 0.9*4 | |
| Dimension Fans（MM） | 630*2 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| 304 Steel Stainless Evaporate | Type | Plate Heat exchange (heat interchange) |
| Water Volume(L/Min) | 200 | |
| Inlet/Outlet (DN) | 50 | |
| Circulating Pump | Power(KW) | 2.2 |
| Convey Water（M） | 37 | |
| Brand | stainless steel pump | |
| Whole Machine | Weight（KG） | 880 |
| Dimension（CM） | 2010*1780*1100 |
Plate exchange chillers are suitable for providing cooling work for open water circuits.
Large plate chillers are suitable for cooling large water tanks and swimming pools to ensure that the water reaches a specific temperature.
The 100HP plate exchange chiller means that its heat exchange function is also more powerful to quickly and effectively remove heat from the coolant, improving cooling efficiency.
Compared with ordinary industrial chillers, plate exchange chillers occupy a smaller area and are easier to install and maintain.
Use international high-efficiency brand chillers to reduce energy consumption and increase operating horsepower.
High-efficiency heat exchange performance: The use of a the high-performance plate heat exchanger with efficient heat exchange allows it to quickly reach the desired temperature and satisfy the requirements of accurate temperature control.
Strong refrigeration capacity: With a compressor of 25HP It has a strong capacity in refrigeration and is ideal for industrial cooling requirements with huge load.
Environmental protection and energy savings: The refrigerant cycle that is optimized and high-efficiency compressor design help reduce the amount of energy used and meets the environmental protection standards.
Compact structure design: Heat exchanger plates are tiny in size, takes up less space and is easy to set up and move.
Easy to maintain: Design modular, simple to take apart and clean. Equipped with an the automatic fault alarm system that helps minimize the time of downtime.

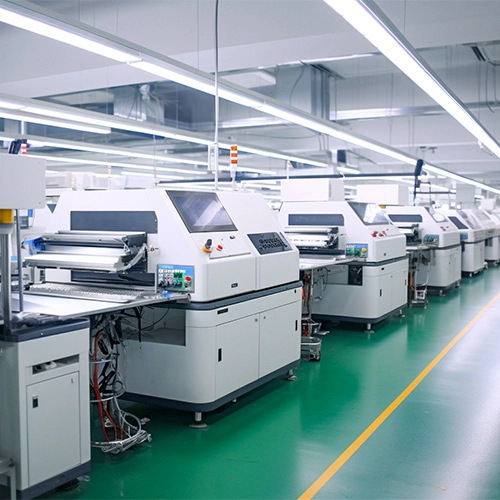

Many applications: It is suitable for plastics, chemicals electronics, food, and other industries that have strict demands for temperature control and the efficiency of refrigeration.
The plate heat exchanger 25HP offers high efficiency, energy-saving and compactness. It is the ideal solution for large and moderate cooling requirements.
