Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty business days.

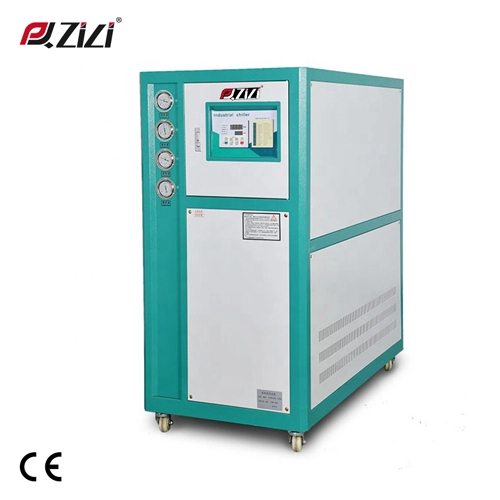

The 40HP water chiller is suitable for large-scale industrial equipment to cool down. The water tank is large, the flow rate is large, and the cooling capacity is sufficient, which can greatly shorten the production time of the product and improve the production efficiency of the factory.
| Model | Product name | PQ-ZL40W |
| Power | Voltage | 3N/380V 50HZ |
| Cooling Capacity | Kcal/H | 103200 |
| KW | 120 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Expansion Valve | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Copeland | |
| Power(KW) | 7.5*4 | |
| Condenser | Form | Straight Tube |
| Evaporate | Water Volume(M³/H) | 48 |
| Water Tank Volume(L) | 600 | |
| Inlet/Outlet (DN) | 80 | |
| Circulating Pump | Water Flow | 800(L/min) |
| Power(KW) | 4 | |
| Convey Water（M） | 22 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1420 |
| Dimension（CM） | 240*90*160 |
Refrigeration capacity up to 120Kw.
The water tank capacity of 40HP machine is upgraded to 800(L/Min).
Core components are from world famous brand to ensure best quality.
Using R22 refrigerant, the cooling effect is good, and there are other refrigerant options.
All stainless steel thick water tank type evaporator, built-in automatic water replenishment and other devices, easy to clean and maintain.
The electrical part adopts the original products of the international brand “Schneider” to ensure that the machine works stably and has a long service life.
High precision: Equipped with a precision digital display temperature controller, which can accurately control the water temperature.
Accept customer's customized requirements.
