Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty business days.
The screw chiller is a chiller that uses a screw compressor. Its cooling power is larger than that of the scroll chiller, and it is mainly used in chemical plants, ink printing plants, automobile manufacturing plants or central air-conditioning systems or other large-scale industrial refrigeration.
| Model | Product name | PQ-ZL40S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 34 | |
| Cooling Capacity | Kcal/H | 124700 |
| KW | 145 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 24 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 30 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 7 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 29 | |
| Water Pipe Diameter(Inch) | PT3″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 24 | |
| Inlet/Outlet (G) | PT3″ | |
| Circulating Pump | PowerConsumption(KW) | 4 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1150 |
| Dimension（CM） | 230*80*145 |

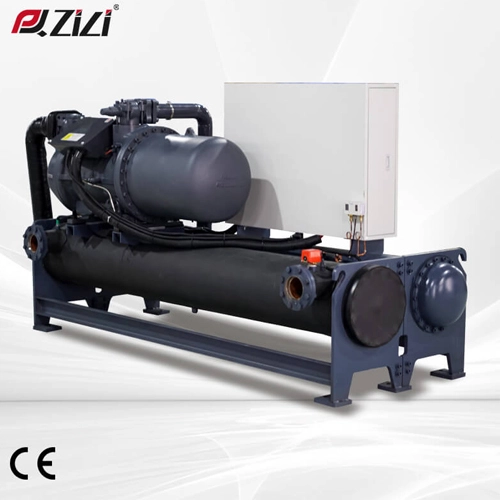

40HP screw chiller unit, various models are available.
High-quality screw compressor, high reliability, few parts, no wearing parts, so reliable operation and long life.
High and low refrigerant pressure switches
Cooling capacity up to 145KW.
Can be customized, minus 60 ℃ cryogenic machine, explosion-proof machine, etc.
Screw electromechanical box，CRAA certification, stable operation and long service life.
The built-in protection program of the computer board reduces the failure and damage to the chiller caused by wrong operation.
Liquid crystal display microcomputer controller, outlet standard, Chinese and English optional, easy to operate; it can display cold water inlet, cold water outlet, and set temperature at the same time; it can accurately adjust the water temperature.
