Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty business days.
50HP screw-type water-cooled starter, high cooling capacity, used in large-scale industrial production lines, large cooling capacity, sufficient flow, fast cooling, high efficiency. At the same time, our company can recommend different machine models according to the needs of customers.
| Model | Product name | PQ-ZL50S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 40 | |
| Cooling Capacity | Kcal/H | 148780 |
| KW | 173 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 30 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 36 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 7 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 35 | |
| Water Pipe Diameter(Inch) | PT3″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 29 | |
| Inlet/Outlet (G) | PT3″ | |
| Circulating Pump | PowerConsumption(KW) | 4 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1350 |
| Dimension（CM） | 250*80*155 |

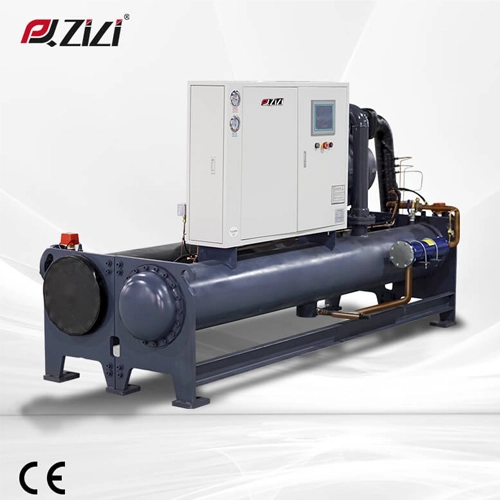

50HP screw chiller unit, various models are available.
Cooling capacity up to 173KW.
Easy use intelligent automatic control panel.
Main components are from world famous brand to ensure best quality .
Advanced semi hermetic screw compressor to ensure the efficient operation.
Diffferent compressors are used for different temperature requirements respectively.
Can be customized according to customer’s temperature requirements.
Shell and tube condenser, copper tube embossing, improve the heat exchange area, compared with coil refrigeration effect in creased 30%~40%; Prevent leakage of refrigerant due to vibration friction of copper tube,refrigeration is faster.
