Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Thirty business days.
Customized by Pengqiang, the standard screw refrigerator is mainly used in the cold source cooling of non-ferrous metallurgy, chemical and pharmaceutical intermediates, petrochemical, grain and oil, beverage and food, machinery, medicine, electronics, air separation and other production and processing processes. The unit consists of a semi-hermetic screw refrigeration compressor, an oil separator, a condenser, an economizer, an evaporator and a control system.
| Model | Product name | PQ-ZL80S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 61.5 | |
| Cooling Capacity | Kcal/H | 223600 |
| KW | 260 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 48 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 56 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 12 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 55 | |
| Water Pipe Diameter(Inch) | PT3″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 46 | |
| Inlet/Outlet (G) | PT4″ | |
| Circulating Pump | PowerConsumption(KW) | 5.5 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1680 |
| Dimension（CM） | 260*85*170 |

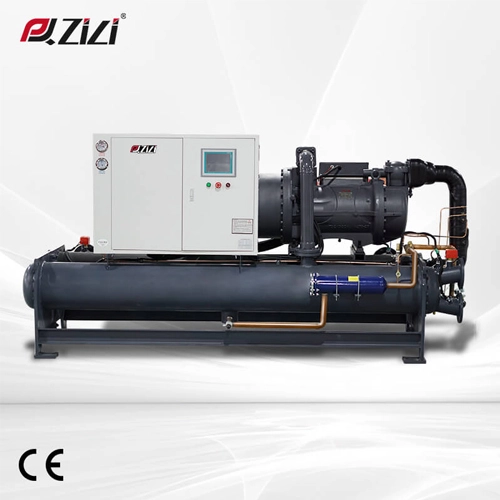

80HP screw chiller unit, various models are available.
Cooling capacity up to 260KW.
The electric control system of the screw freezer adopts highly intelligent PLC and PC-level microcomputer control system. Responsive, precise control.
Shell-and-tube condenser and evaporator: The condenser of the screw refrigerator uses different types of heat-exchanging copper tubes, and the outer surface of the copper tubes is processed into a trapezoidal low-finned tube to increase the heat exchange area and enhance heat exchange performance.
The inner surface of the copper pipe is smooth, which reduces the water pressure and is easy to clean and maintain.
Six Protections.
The power of the screw chiller is relatively higher than that of the scroll chiller, and it is mainly used in large-scale industrial refrigeration such as central air conditioning systems, chemicals, textiles, food, pharmaceuticals, and chemical fibers.
The thermal expansion valve, solenoid valve, check valve and other control components of international famous brands are selected to ensure the efficient and stable operation of the unit in a wide range of operating conditions.
