Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Five business days.

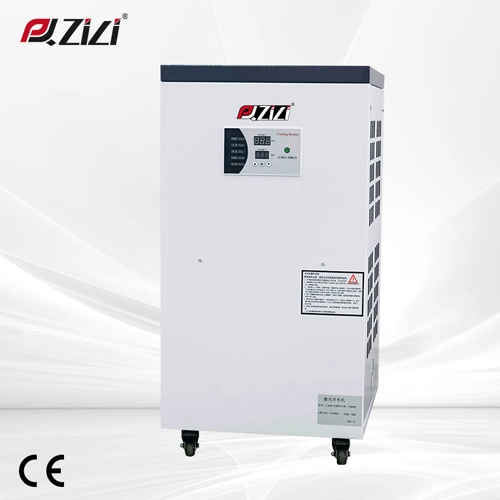

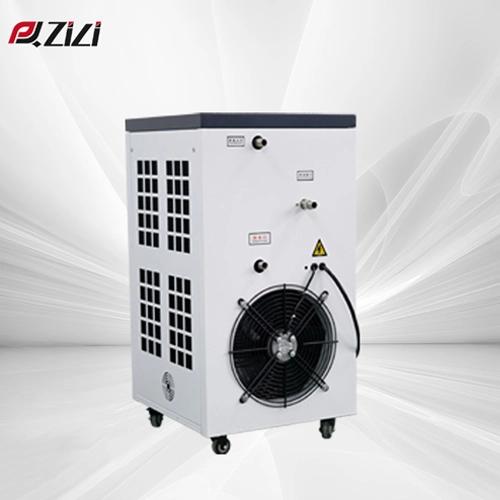

The laser chiller is an individualized application of industrial refrigerators to the laser industry. The laser chiller mainly performs water circulation cooling on the laser generator of the laser equipment, and controls the operating temperature of the laser generator so that the laser generator can be maintained for a long time normal work.
| Model | Product name | PQ-ZL0.6L |
| Power | Voltage | 1N/220V/50hz |
| Power Supply(KW) | 0.745 | |
| Cooling Capacity | Kcal/H | 1307 |
| KW | 1.52 | |
| Temperature Range | ℃ | 5℃~30℃（± 0.3 ℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | GREE | |
| Power(KW) | 0.605*1 | |
| Draught Fans | Power（KW） | 0.055 |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Tank Volume(L) | 11 |
| Inlet/Outlet (DN) | 1/2″ | |
| Water Pump | Water Flow(L/MIN) | 15 |
| Power(KW) | 0.085 | |
| Convey Water（M） | 7~10 | |
| Brand | Auyuan | |
| Whole Machine | Net Weight（KG） | 37 |
| Dimension（CM） | 47*38*58.9 |
304 Stainless Steel Water Tank.
Cooling capacity up to 1307 Kcal/H
0.6HP small chiller, suitable for cooling simple and small products.
The body is small, portable and convenient, and does not occupy storage space.
Machine longevity and durability.
Stable performance, simple operation, convenient maintenance, a variety of power supply models, complete specifications.
Supporting use of laser equipment, precision digital display temperature controller, can accurately control water temperature, button operation, simple operation, can be used normally without technical personnel.
Punp circuit boardis durable.
