Huizhou PengQiang, service-oriented, provide one-stop service, Ships within five business days.
The compressor is powerful and meets the basic cooling needs. In addition to the standard chiller, it also accepts customized models such as integrated cooling and heating machines, low-temperature machines, etc.
| Model | Product name | PQ-ZL08A |
| Power | Voltage | 3N/380V/50HZ/50hz |
| Cooling Capacity | Kcal/H | 20000 |
| KW | 22.4 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Mitsubishi | |
| Power(KW) | 6 | |
| Draught Fans | Air Volume（M³/H) | 13000 |
| Power（KW） | 0.54*2 | |
| Dimension Fans（MM） | 450*2 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Volume(M³/H) | 4.82 |
| Water Tank Volume(L) | 120 | |
| Inlet/Outlet (DN) | 40 | |
| Circulating Pump | Water Flow | 150(L/min) |
| Power(KW) | 1.1 | |
| Convey Water（M） | 20 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 380 |
| Dimension（CM） | 140*70*100 |

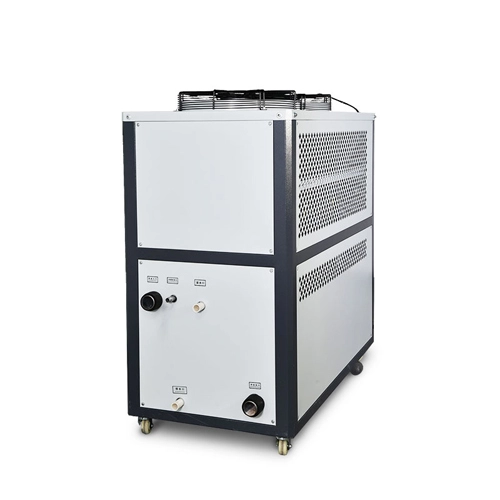

Air cooled 8HP portable & packaged chiller.
Water tank capacity upgraded to 120L.
Easy intallation, connected with pipe and power on is ok for working.
No need to purchase a water tower.
High efficiency quiet fans.
It has been installed and debugged before leaving the factory. After unpacking and connecting the power supply, it can be used after starting up.
Mitsubishi compressor.
Water Tank Volume 120L.
Copper tube heat exchanger.
High and low pressure oil gauge.
