Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Five business days.
Laser marking machines, laser engraving machines, laser welding machines, laser inkjet printers, laser cutting machines and other laser processing equipment research and development, production, and processing companies are emerging. The quality of the cooling system is a key link in the entire laser marking operation, and it is an indispensable companion in the laser industry.
| Model | Product name | PQ-ZL1.5L |
| Power | Voltage | 1N/220V/50hz |
| Power Supply(KW) | 1.743 | |
| Cooling Capacity | Kcal/H | 3440 |
| KW | 4 | |
| Temperature Range | ℃ | 5℃~30℃（± 0.3 ℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | GREE | |
| Power(KW) | 1.23*1 | |
| Draught Fans | Power（KW） | 0.143 |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Tank Volume(L) | 22 |
| Inlet/Outlet (DN) | 1/2″ | |
| Water Pump | Water Flow(L/MIN) | 33 |
| Power(KW) | 0.37 | |
| Convey Water（M） | 24~30 | |
| Brand | Auyuan | |
| Whole Machine | Net Weight（KG） | 70 |
| Dimension（CM） | 50*47*90.5 |
Cooling capacity up to 3440 Kcal/H.
Accurate temperature control temperature range 5-35C temperature error ± 1.
Strainer mesh.

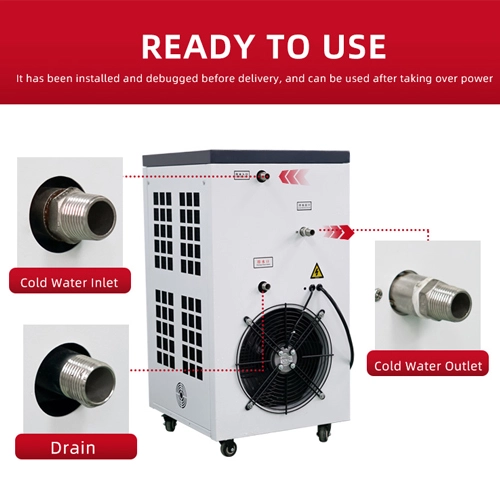

Standard stainless steel water inlet and outlet interfaces, can be equipped with a variety of joints or hoses, external closed loop.
The water tank adopts immersion installation stainless steel outer wall copper tube with good heat exchange effect, plate type and shell and tube evaporator can be customized.
Dust filter prevents dust from entering to protect the interior.
Powerful performance, stable output.
Brand accessories are durable.
