Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Ten business days.

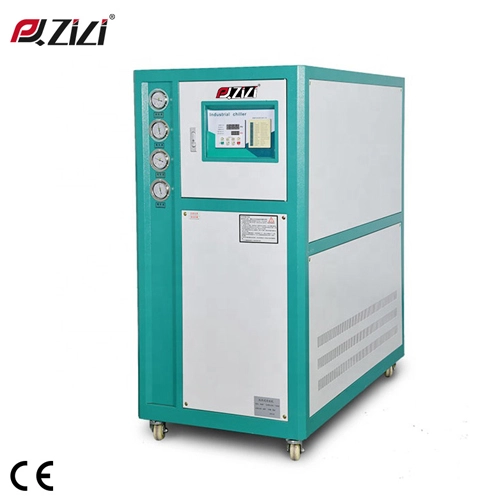

Pengqiang company is a company specializing in the production and manufacture of chillers. It has air-cooled chillers, water-cooled chillers, laser chillers, plate-for-plate chillers, screw chillers and other types of chillers, and can also accept customized services. At present, the 10HP water-cooled chiller is on the shelves. It is a very cost-effective chiller that can meet the cooling needs of equipment in various industries.
| Model | Product name | PQ-ZL10W |
| Power | Voltage | 3N/380V 50HZ |
| Cooling Capacity | Kcal/H | 25800 |
| KW | 30 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Panasonic | |
| Power(KW) | 7.5 | |
| Condenser | Form | Straight Tube |
| Evaporate | Water Volume(M³/H) | 5.81 |
| Water Tank Volume(L) | 140 | |
| Inlet/Outlet (DN) | 50 | |
| Circulating Pump | Water Flow | 200(L/min) |
| Power(KW) | 1.5 | |
| Convey Water（M） | 20 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 380 |
| Dimension（CM） | 130*68*141 |
Refrigeration capacity up to 30Kw.
The water tank capacity of 10HP machine is upgraded to 200(L/Min).
Need water tower.

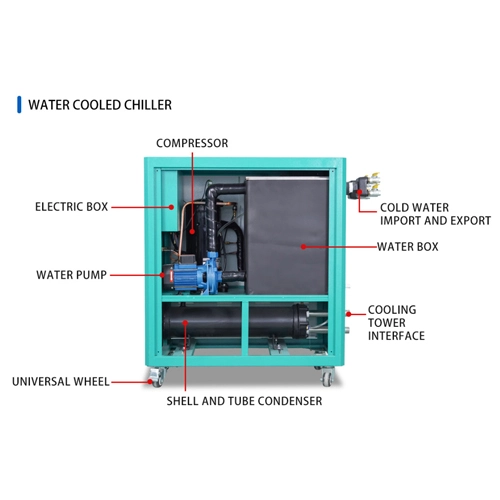

Tube & Shell Condenser.
Fast thermal conductivity, good heat dissipation effect.
Water cooled chiller 10HP portable & packaged chiller.
PLC controller provides diagnostics and precise temperature control.
The front chassis panel is convenient to open and check the circuit at any time.
