Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty business days.
It is suitable for providing cooling system matching and engineering in various industries such as plastics, electroplating, electronics, chemical industry, medical treatment, purification, food, metallurgy, etc. At the same time, it also provides water with excellent performance for shopping malls, office buildings, hotels, hotels, hospitals, residential villas, etc. system to create a quiet and comfortable living and working environment for customers.
| Model | Product name | PQ-ZL125A(100Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 120 |
| Cooling Capacity | Kcal/H | 312500 |
| KW | 350 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 95.5 | |
| Draught Fans | Air Volume（M³/H) | 130000 |
| Power（KW） | 1.126*8 | |
| Dimension Fans（MM） | 830*8 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 600 | |
| Inlet/Outlet (DN) | 100 | |
| Circulating Pump | Power(KW) | 11 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 2950 |
| Dimension（CM） | 4000*2200*1910 |

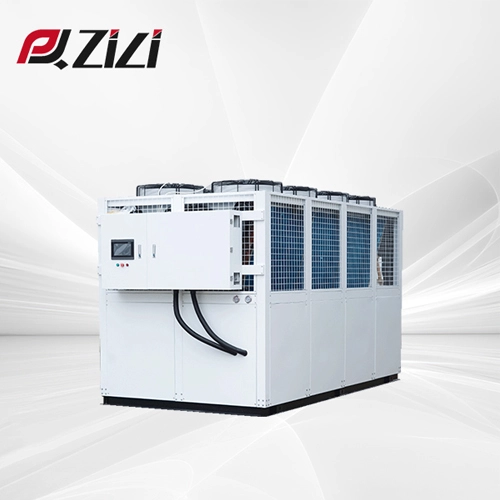

Air water cooled 125HP 100 ton central chiller.
Cooling capacity up to 312500Kcal/H.
Air-cooled screw chiller with high cooling capacity, suitable for centralized water supply.
High-intelligence PLC, PC-level computer control system, Chinese and English display screen, menu-style buttons, remote monitoring and control, easy operation.
Main components are from world famous brand to ensure best quality.
Advanced hermetic scroll compressor to ensure the efficient operation.
Semi-hermetic Hanbell compressor.
A variety of refrigerants can be selected.
