Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Ten business days.
12HP air chiller is suitable for cooling relatively large industrial products, the product is shipped in a thickened wooden box to ensure that the machine will not be damaged during transportation.
| Model | Product name | PQ-ZL12A |
| Power | Voltage | 3N/380V/50HZ/50hz |
| Cooling Capacity | Kcal/H | 30000 |
| KW | 33.6 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Panasonic | |
| Power(KW) | 4.5*2 | |
| Draught Fans | Air Volume（M³/H) | 15000 |
| Power（KW） | 0.58*2 | |
| Dimension Fans（MM） | 500*2 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Volume(M³/H) | 7.65 |
| Water Tank Volume(L) | 160 | |
| Inlet/Outlet (DN) | 50 | |
| Circulating Pump | Water Flow | 200(L/min) |
| Power(KW) | 1.5 | |
| Convey Water（M） | 20 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 410 |
| Dimension（CM） | 162*85*165 |

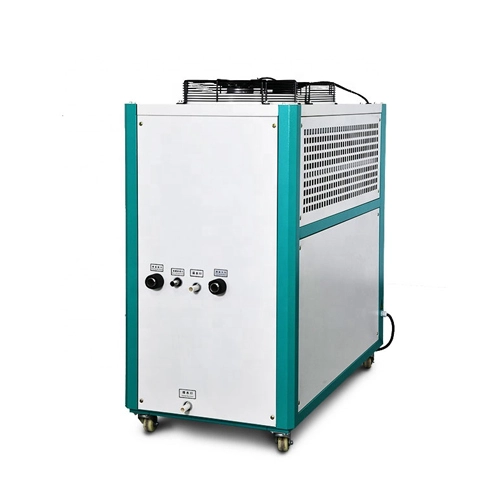

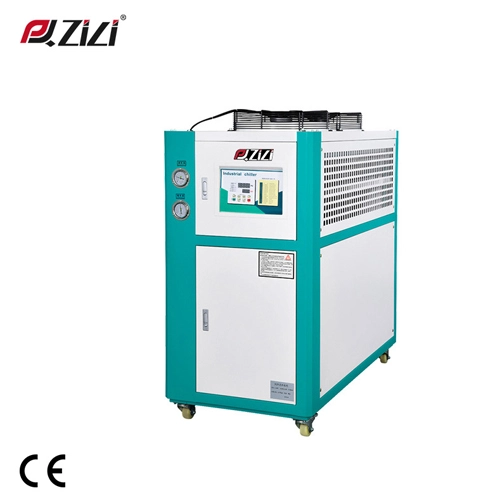

Air cooled 12HP portable & packaged chiller.
Easy intallation, connected with pipe and power on is ok for working.
No need to purchase a water tower.
Larger cooling capacity can meet more cooling needs.
Panasonic compressor,quality and safety guaranteed.
Alarm, always monitor machine safety.
The built-in protection program of the computer board reduces the failure and damage to the chiller caused by wrong operation.
R22 (Or R134a/R407c) and other refrigerants are optional
The same weight and volume as 5HP, but the power becomes more powerful.
The cooling range of 5°C~30°C covers the cooling needs of most industries.
Copper evaporator.
All copper radiator.
