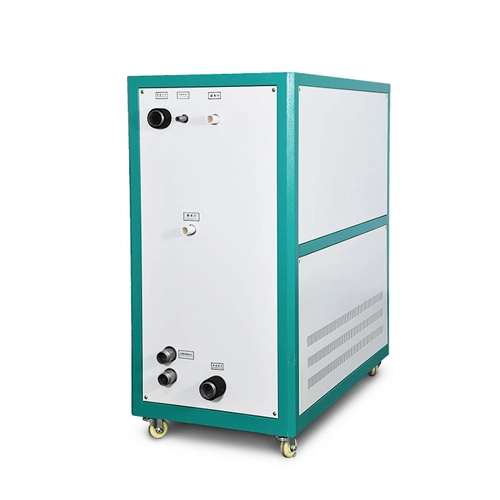

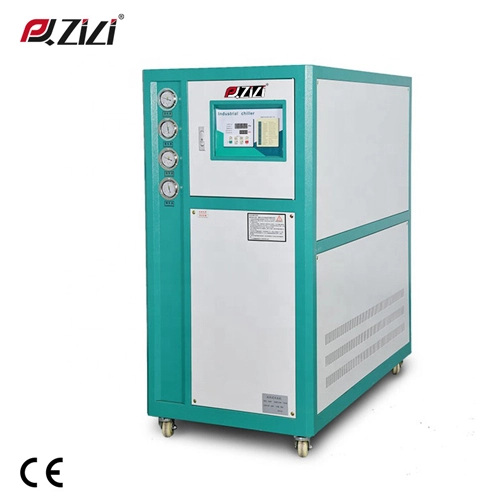

PQ-ZL12W Water Cooled Chiller

Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Fifteen business days.

The 12HP industrial water-cooled chiller is cost-effective and can meet most production needs, but the water-cooled chiller needs to be connected to a water tower before it can be used. Pay attention to maintenance during the use of the water-cooled chiller, especially during the peak use period in summer.

Many customers buy it Industrial chillers operate 24 hours without stopping, and the water quality in some customers’ areas has impurities, such as sedimentation, and the runoff water from the water tank contains corrosive impurities. In addition, the ambient temperature in summer is relatively high, so it is also the stage with the highest failure rate of the chiller.

Each user should clean and maintain the chiller before the peak use of the unit to achieve the best cooling effect. For users with poor water quality and no water treatment, it is recommended to do a comprehensive maintenance before the peak use period of the chiller to ensure the cooling effect. The maintenance time is usually once every six months. If you use pure water, you can maintain it once a year, that is, do a comprehensive maintenance. For users who use cooling water towers, the water system should be cleaned every three months or half a year.

pengqingzili

Specifications of PQ-ZL12W Water Cooled Chiller


ModelProduct namePQ-ZL12W
PowerVoltage3N/380V 50HZ
Cooling CapacityKcal/H30960
KW36
Temperature Range5℃~35℃(Below 0℃ Could be customized)
RefrigerantNameR22(Or R134a/R407c)
Control MethodCapillary Tube
CompressorTypeHermetic Scroll Type or Piston Compressor
BrandPanasonic
Power(KW)4.5*2
CondenserFormStraight Tube
EvaporateWater Volume(M³/H)7.65
Water Tank Volume(L)160
Inlet/Outlet (DN)50
Circulating PumpWater Flow200(L/min)
Power(KW)1.5
Convey Water(M)20
BrandAuyuan
Whole MachineWeight(KG)410
Dimension(CM)140*68*141


Features of PQ-ZL12W Water Cooled Chiller

01

Refrigeration capacity up to 36Kw.


02

The water tank capacity of 12HP machine is upgraded to 200(L/Min).


03

Water-cooled chillers need to be connected to a water tower.


04

Branded compressors are used, safe and energy-savin.


05

Chillers and refrigerants can be customized according to customer requirements.


06

Chillers have many uses, in addition to being useful in industry, they are also of great help in agriculture.


07

12HP chiller is suitable for most industrial production applications with high cost performance.


08

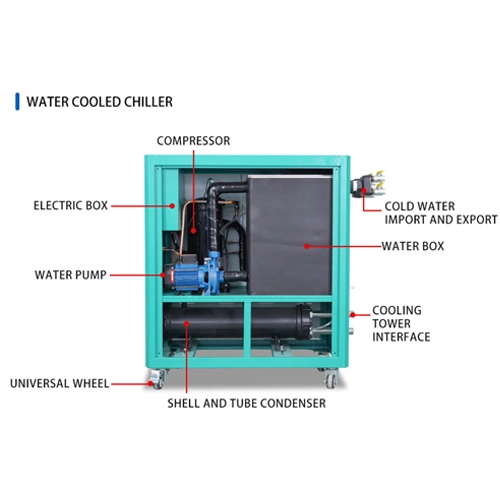

12HP chiller, simple product structure, easy to open the electric box, convenient for customers to check and clean the chiller
