Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Ten business days.
Effectively provide cooling for bottle blowing machines, blow molding machines and other equipment, and take away the heat generated during the operation of industrial equipment.
| Model | Product name | PQ-ZL15A |
| Power | Voltage | 3N/380V/50HZ/50hz |
| Cooling Capacity | Kcal/H | 37500 |
| KW | 42 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Panasonic | |
| Power(KW) | 11.25 | |
| Draught Fans | Air Volume（M³/H) | 15000 |
| Power（KW） | 0.58*2 | |
| Dimension Fans（MM） | 550*2 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Volume(M³/H) | 7.65 |
| Water Tank Volume(L) | 230 | |
| Inlet/Outlet (DN) | 50 | |
| Circulating Pump | Water Flow | 340(L/min) |
| Power(KW) | 1.5 | |
| Convey Water（M） | 20 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 680 |
| Dimension（CM） | 175*86*161 |

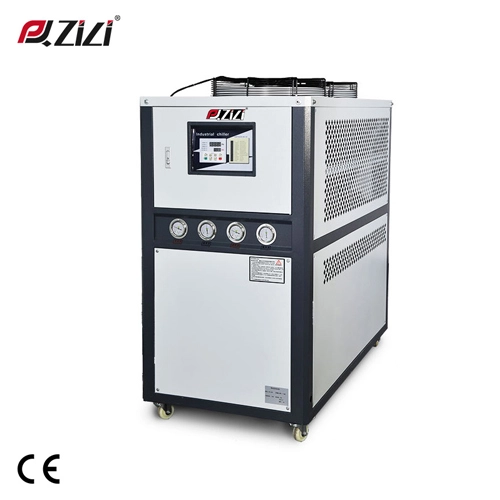

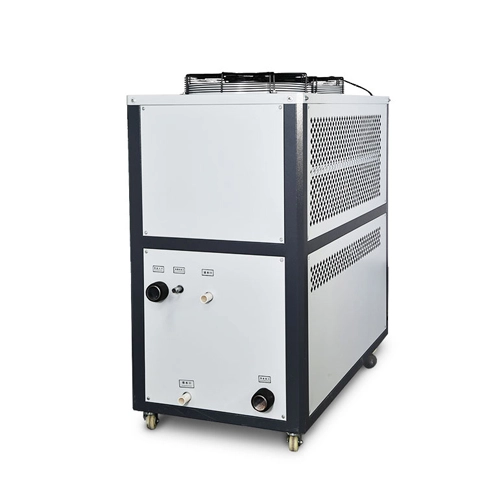

Air cooled 15HP portable & packaged chiller.
Large flow brand water pump.
High power fan.
Large flow circulating cold water, fast cooling.
Provide customized services, can make chillers at minus 60°.
Easy intallation, connected with pipe and power on is ok for working.
No need to purchase a water tower.
Piping with sealed circulation is required.
Emerson filter, effectively filter out impurities and foreign matter.
Stainless steel hose live joint, easy to disassemble and replace the water pump.
Anti-corrosion and durable stainless steel bucket.
