Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty-five business days.
Most of the screw chillers are used in places where the water temperature accuracy is particularly high, such as hot water supply systems, data center service cooling, large hotel cooling, etc. 180HP is a large chiller with high precision, fast cooling, and high efficiency.
| Model | Product name | PQ-ZL180S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 130 | |
| Cooling Capacity | Kcal/H | 491920 |
| KW | 572 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 108 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 119 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 23 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 116 | |
| Water Pipe Diameter(Inch) | PT5″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 96 | |
| Inlet/Outlet (G) | PT5″ | |
| Circulating Pump | PowerConsumption(KW) | 11 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 2650 |
| Dimension（CM） | 350*90*190 |

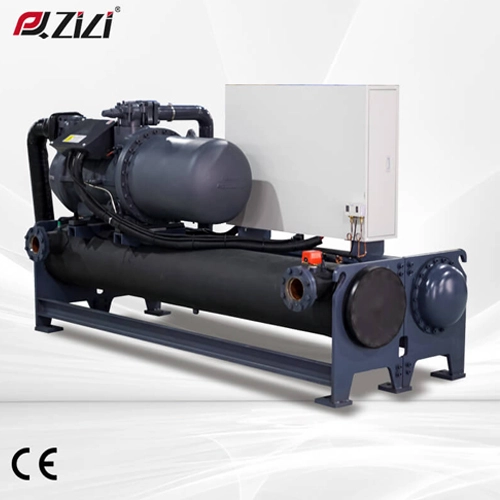

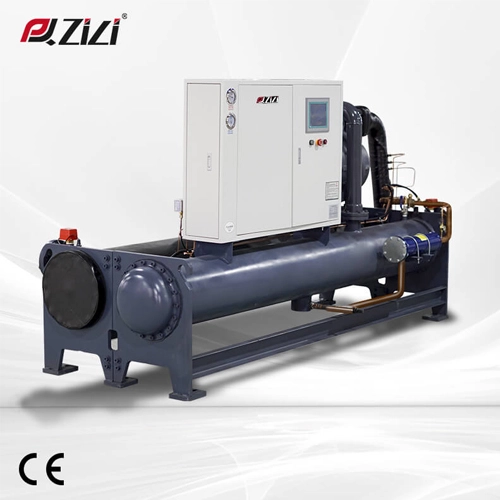

180HP screw chiller unit, various models are available.
Cooling capacity up to 572KW.
The chiller condenser adopts water cooling method, which can be used on various systems, with stable performance and convenient maintenance.
The unit adopts a semi-hermetic high-efficiency screw compressor with built-in safety protection, low noise, power saving and durability.
According to customer needs, customized screw machine suitable for various environments.
The imported PLC human-machine operation interface is a LCD touch screen with graphic display, easy to operate, and Chinese and English are optional.
Equipped with RS485 national standard communication interface, it can be connected to the entire factory automatic control network, which is convenient for remote control and monitoring.
All the chillers are selected from the original imported brand-name semi-closed screw type, low-carbon, energy-saving and environmentally friendly; good performance and low noise.
