Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty business days.

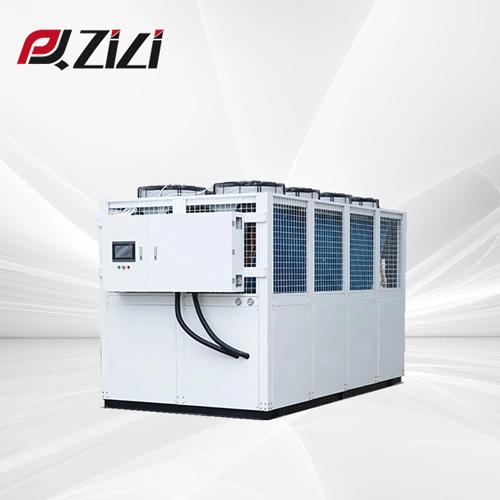

The screw air-cooled chiller is suitable for a variety of industries and can meet the cooling needs of various industrial equipment. The 200HP screw air-cooled chiller is currently our largest screw air-cooled chiller, which can already meet most of the cooling needs. We look forward to custom orders from customers.
| Model | Product name | PQ-ZL200A(150Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 178 |
| Cooling Capacity | Kcal/H | 500000 |
| KW | 560 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 150 | |
| Draught Fans | Air Volume（M³/H) | 200000 |
| Power（KW） | 1.7*10 | |
| Dimension Fans（MM） | 900*10 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 900 | |
| Inlet/Outlet (DN) | 150 | |
| Circulating Pump | Power(KW) | 11 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 4000 |
| Dimension（CM） | 4900*2200*2300 |
Air water cooled 200HP 120 ton central chiller.
Cooling capacity up to 500000 Kcal/H.
Super large screw air cooler to meet the cooling needs of various industrial machines.
Remote monitoring can monitor the status and operation of the chiller at any time. The operation panel of the microcomputer intelligent digital controller is eye-catching and simple, and the operation is simple and convenient.
High-precision high and low pressure gauges dedicated to chillers, real-time and accurate monitoring of the operating status of refrigeration equipment.
Can be customized.
The semi-hermetic screw compressor is selected for stable operation, low noise, energy saving and power saving.
The electrical control components of the chiller are assembled with branded accessories, which are durable and stable in operation.
All-copper condenser dissipates heat quickly.
