Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Fifteen business days.
The 20HP chiller adopts the Copeland compressor, which is 20% higher in energy efficiency than the advanced piston compressors on the market, which can better exert the cooling effect and meet the cooling needs of large machines.
| Model | Product name | PQ-ZL20A |
| Power | Voltage | 3N/380V/50HZ/50hz |
| Cooling Capacity | Kcal/H | 50000 |
| KW | 56 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Copeland | |
| Power(KW) | 15 | |
| Draught Fans | Air Volume（M³/H) | 21600 |
| Power（KW） | 0.9*2 | |
| Dimension Fans（MM） | 630*2 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Volume(M³/H) | 10.16 |
| Water Tank Volume(L) | 300 | |
| Inlet/Outlet (DN) | 65 | |
| Circulating Pump | Water Flow | 500(L/min) |
| Power(KW) | 2.2 | |
| Convey Water（M） | 20 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 830 |
| Dimension（CM） | 187*95*179 |

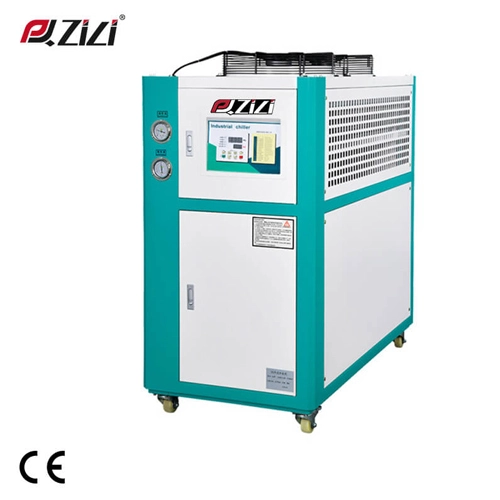

Air cooled 20HP portable & packaged chiller.
Standard water tank pure copper evaporator.
Schneider contactor, compressor pump overload protection with load circuit breaker.
Water Tank Volume 500L.
Cooling capacity up to 50000Kcal/H
No water tower required.
Easy intallation, connected with pipe and power on is ok for working.
Different options for iron and stainless steel pumps.
Accept customer customized service.
Using intelligent microcomputer control system, the air temperature accuracy can be greater than ±1° Simple operation, reasonable structure design, convenient maintenance.
Copeland compressor.
