Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Fifteen business days.

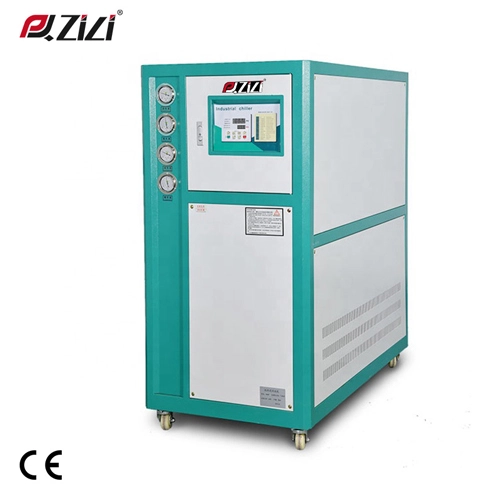

The 20HP chiller has relatively large cooling capacity, relatively good cooling speed and cooling effect, and is suitable for large-scale production plants and customers who have high requirements for efficiency.
| Model | Product name | PQ-ZL20W |
| Power | Voltage | 3N/380V 50HZ |
| Cooling Capacity | Kcal/H | 51600 |
| KW | 60 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Panasonic | |
| Power(KW) | 15 | |
| Condenser | Form | Straight Tube |
| Evaporate | Water Volume(M³/H) | 10.16 |
| Water Tank Volume(L) | 300 | |
| Inlet/Outlet (DN) | 65 | |
| Circulating Pump | Water Flow | 500(L/min) |
| Power(KW) | 2.2 | |
| Convey Water（M） | 22 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 720 |
| Dimension（CM） | 183*75*163 |
Refrigeration capacity up to 60Kw.
The water tank capacity of 20HP machine is upgraded to 500(L/Min).
Need water tower.
Both compressor and pump have overload protection.
Optional R407C environmentally friendly refrigerant, closer to nature.
Large cooling capacity.

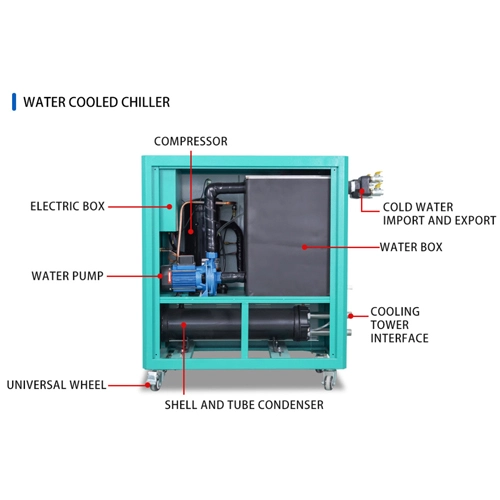

Large-capacity shell-and-tube evaporator is adopted, which has good cooling effect and is suitable for environments with high temperature.
Compared with water-cooled units and air-cooled units with the same cooling capacity, the overall power consumption of water-cooled units (including the power consumption of cooling water pumps and cooling tower fans) is energy-saving and power-saving.
