Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty-five business days.
The 220HP screw chiller is a large-scale mechanical equipment, which is mostly used for large-scale or collective cooling products. It can provide a large cooling capacity in a short time and basically meet the needs of industrial cooling.
| Model | Product name | PQ-ZL220S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 163 | |
| Cooling Capacity | Kcal/H | 614900 |
| KW | 715 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 132 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 148 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 28 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 148 | |
| Water Pipe Diameter(Inch) | PT6″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 122 | |
| Inlet/Outlet (G) | PT6″ | |
| Circulating Pump | PowerConsumption(KW) | 15 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 3000 |
| Dimension（CM） | 365*100*202 |

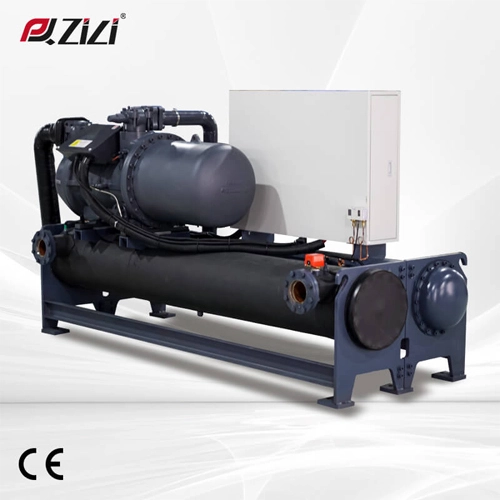

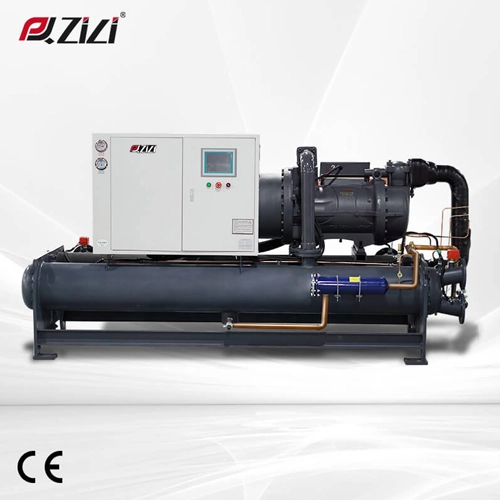

220HP screw chiller unit, various models are available.
Cooling capacity up to 715KW.
Compressor, less wearing parts, insensitive to temperature range, extremely low failure rate, corrosion-resistant motor, good reliability.
Highly intelligent PLC-level microcomputer control system, quick response, precise control, automatic loading timing switch and multiple charging functions such as recording the cause of failure.
PUNP circuit board, (low failure rate/good stability/durable/easy to maintain)France Schneider electrical accessories, international export chiller standard safety protection device.
lt has been installed and debugged before delivery, and can be used after taking over power.
Large Air Volume And Fast Heat Dissipation.
