Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty-five business days.
The 240HP ultra-large screw chiller is shockingly launched, meeting all the basic needs of customers and accepting diversified customization of chillers, low temperature, medium temperature, integrated cooling and heating, and explosion-proof chillers, all can be consulted.
| Model | Product name | PQ-ZL220S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 182 | |
| Cooling Capacity | Kcal/H | 692300 |
| KW | 805 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 144 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 167 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 28 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 155 | |
| Water Pipe Diameter(Inch) | PT6″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 132 | |
| Inlet/Outlet (G) | PT6″ | |
| Circulating Pump | PowerConsumption(KW) | 15 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 3350 |
| Dimension（CM） | 395*100*202 |

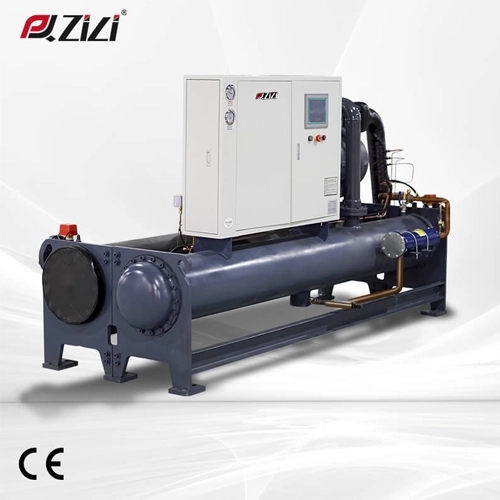

240HP screw chiller unit, various models are available.
Cooling capacity up to 805KW.
All copper tube cooling effect is good, cooling is better.
In addition to the internal protection module of the compressor to protect the compressor from overvoltage, undervoltage, phase loss, and overload, the pressure control and other devices of the refrigeration system can make the unit work foolproof.
The screen can display the running status of the screw chiller at any time, which is clear at a glance.
The main engine adopts imported semi-hermetic screw compressor, which has many advantages such as compact structure, small size, light weight, small installation location, stable performance, low noise, small vibration, and stable operation.
The electrical part adopts Schneider and other brand-name electrical components to ensure efficient and stable operation of the machine and a long service life.Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Forty-five business days.
