Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Fifteen business days.
Models have a single compressor or multi-compressor combined refrigeration system. The compressors can automatically run alternately according to load changes, balancing the running hours of each compressor, achieving the effect of saving energy and extending the service life of the chiller. Facilitate energy regulation, more energy saving at partial load.
| Model | Product name | PQ-ZL30A |
| Power | Voltage | 3N/380V/50HZ/50hz |
| Cooling Capacity | Kcal/H | 75000 |
| KW | 84 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Expansion Valve | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Copeland | |
| Power(KW) | 22 | |
| Draught Fans | Air Volume（M³/H) | 51000 |
| Power（KW） | 0.9*3 | |
| Dimension Fans（MM） | 630*3 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Volume(M³/H) | 15.2 |
| Water Tank Volume(L) | 450 | |
| Inlet/Outlet (DN) | 80 | |
| Circulating Pump | Water Flow | 800(L/min) |
| Power(KW) | 4 | |
| Convey Water（M） | 22 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1330 |
| Dimension（CM） | 242*110*196 |

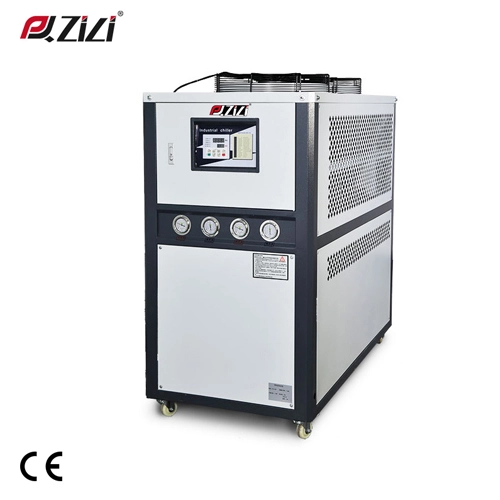

Air cooled 30HP portable & packaged chiller.
Water Tank Volume 500L.
Cooling capacity up to 62500Kcal/H
No water tower required.
Easy intallation, connected with pipe and power on is ok for working.
Bottom swivel wheels, with brakes, easy to move.
The cooling speed is 3 minutes faster and 10 degrees lower.
The box structure of the whole machine shell has beautiful appearance and compact structure.
Can be customized for open water circuit refrigeration (such as pools, water tanks, sinks) with inconsistent outlet and return water pressures.
Thickened and enlarged one-piece water tank, no water leakage and no rust.
