Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Fifteen business days.
The screw compressor is relatively more stable, has a longer service life, and has a better cooling effect. It is equipped with a high-efficiency shell-and-tube evaporator and a high-efficiency shell-and-tube condenser; it has higher heat dissipation efficiency and better cooling effect.
| Model | Product name | PQ-ZL30S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 26 | |
| Cooling Capacity | Kcal/H | 92880 |
| KW | 108 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 18 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 22 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 7 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 22 | |
| Water Pipe Diameter(Inch) | PT3″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 18 | |
| Inlet/Outlet (G) | PT2-1/2″ | |
| Circulating Pump | PowerConsumption(KW) | 4 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1020 |
| Dimension（CM） | 225*80*145 |

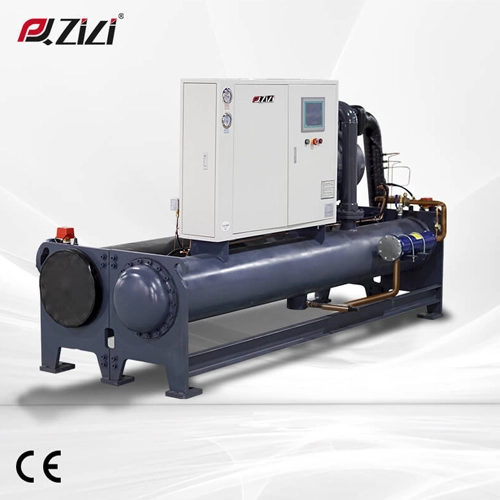

30HP screw chiller unit, various models are available.
R407 refrigerant.
Cleanable frame mounted water-cooled condensers with removable heads.
Refrigeration capacity up to 108Kw.
Original brand compressor, low power consumption, silent refrigeration, fast operation and stable operation.
Fully enclosed water flow switch.
Emerson filter.
High-precision high and low pressure gauges monitor the operating status of refrigeration equipment with real-time accuracy.
