Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty business days.

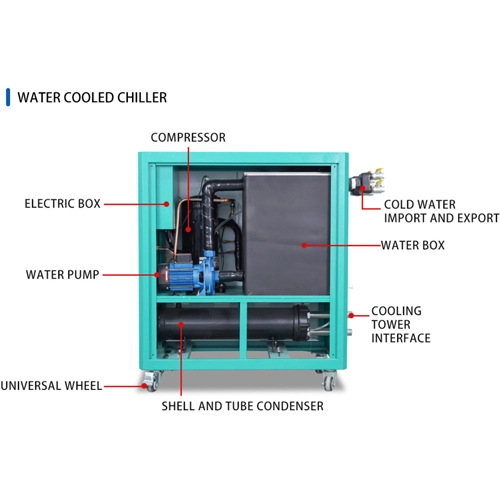

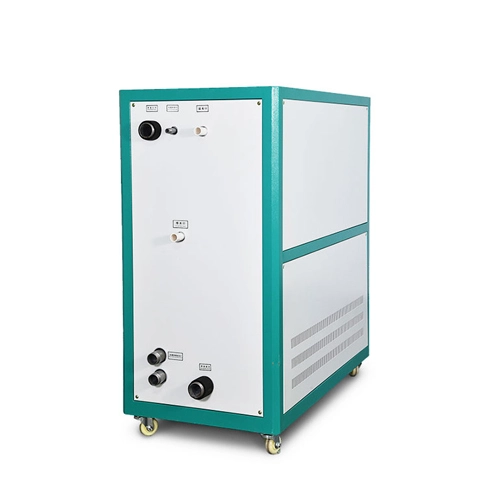

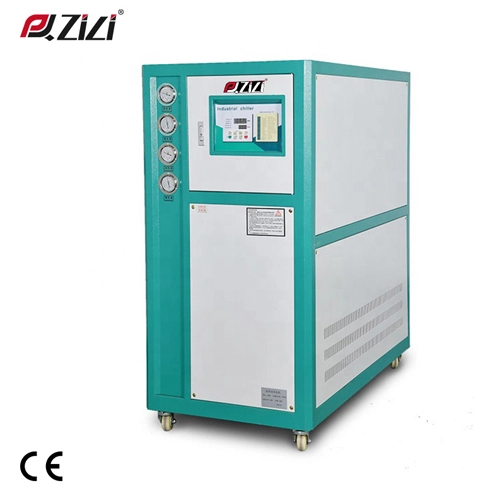

The 30HP water-cooled industrial chiller is a chiller that uses cooling circulating water as the condensation method. Except for the cooling water tower, all components of the unit are installed inside the box. The overall design is compact and reasonable, and the appearance is generous and beautiful. The output horsepower is 30HP, and the control range of the outlet water temperature is 5°C to 35°C. Low-temperature and explosion-proof chillers can be customized according to process requirements.
| Model | Product name | PQ-ZL30W |
| Power | Voltage | 3N/380V 50HZ |
| Cooling Capacity | Kcal/H | 77400 |
| KW | 90 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Expansion Valve | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Copeland | |
| Power(KW) | 22 | |
| Condenser | Form | Straight Tube |
| Evaporate | Water Volume(M³/H) | 15.2 |
| Water Tank Volume(L) | 450 | |
| Inlet/Outlet (DN) | 80 | |
| Circulating Pump | Water Flow | 800(L/min) |
| Power(KW) | 4 | |
| Convey Water（M） | 22 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 870 |
| Dimension（CM） | 200*86*161 |
Refrigeration capacity up to 90Kw.
The water tank capacity of 30HP machine is upgraded to 800(L/Min).
Need water tower.
Well-known water pumps ensure stable water circulation, low noise, no leakage, and maintenance-free.
Microcomputer Control Panel.
Microcomputer temperature control program, accurate temperature control+1C, can control water temperature 5~35℃.
We accept ODM and OEM.
The world-renowned turbo compressor brand, solid cast iron body provides a large heat dissipation area.
