Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Ten business days.
In terms of assembly performance, in addition to the general characteristics of the water-cooled screw chiller series, its biggest advantage is that it does not require a water cooling system. It can be used as long as it is in a well-ventilated place. It does not need to be equipped with auxiliary equipment such as cooling water pumps and cooling towers. It can save a lot of material and engineering installation costs, and even does not need to set up a machine room.
| Model | Product name | PQ-ZL40A(30Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 38 |
| Cooling Capacity | Kcal/H | 105000 |
| KW | 112 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 30 | |
| Draught Fans | Air Volume（M³/H) | 51000 |
| Power（KW） | 0.66*6 | |
| Dimension Fans（MM） | 550*6 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 400 | |
| Inlet/Outlet (DN) | 65 | |
| Circulating Pump | Power(KW) | 4 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1380 |
| Dimension（CM） | 2410*1830*1960 |

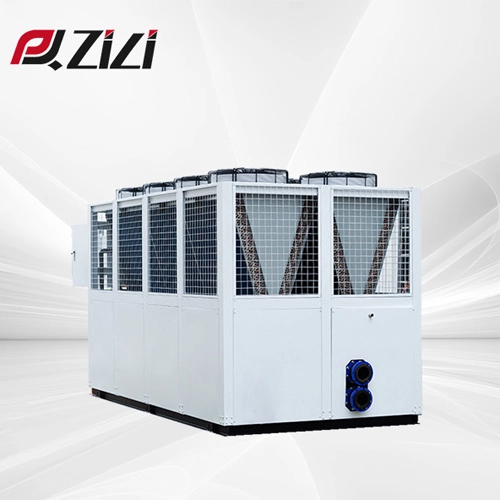

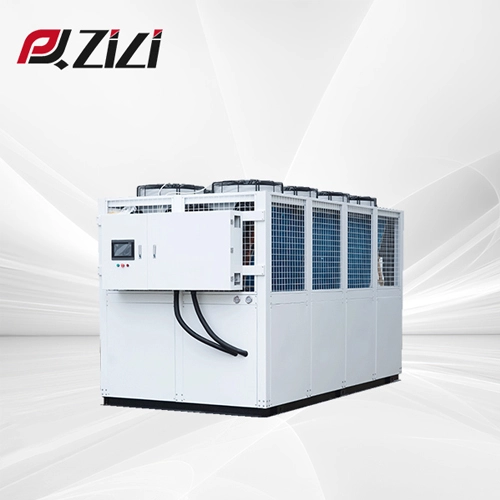

Air water cooled 40HP 30ton central chiller.
Cooling capacity up to 105000Kcal/H.
Adopt international famous brand twin-screw compressor, which enjoys the characteristics of high efficiency, low noise, low wear and long service life.
Ultra-wide chilled water temperature variable range, meeting the requirements of low-temperature industrial use.
Environmentally friendly refrigerants, customers can choose refrigerants according to their needs.
Have perfect equipment protection：Compressor Overheat Protection,High & Low Voltage Protection,Frost Protection,Phase Reverse Protection,Pump Overload Protection,Earth Leakage Protection.
Choose hanbell compressor small vibration,low noise can achieve four section capacity adjustment(25%/50%/75%/100%).
Copper tube design with internal thread, increase heat transfer area.shorten cooling time.
1300 turn strong wind, large wind volume, small vibrationrapid heat dissipation.
