Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Ten business days.
Industrial chillers are widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical, ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality.
| Model | Product name | PQ-ZL50A(40Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 47 |
| Cooling Capacity | Kcal/H | 126170 |
| KW | 140 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 37 | |
| Draught Fans | Air Volume（M³/H) | 51000 |
| Power（KW） | 0.66*6 | |
| Dimension Fans（MM） | 550*6 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 400 | |
| Inlet/Outlet (DN) | 80 | |
| Circulating Pump | Power(KW) | 5.5 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1380 |
| Dimension（CM） | 2410*1830*1960 |

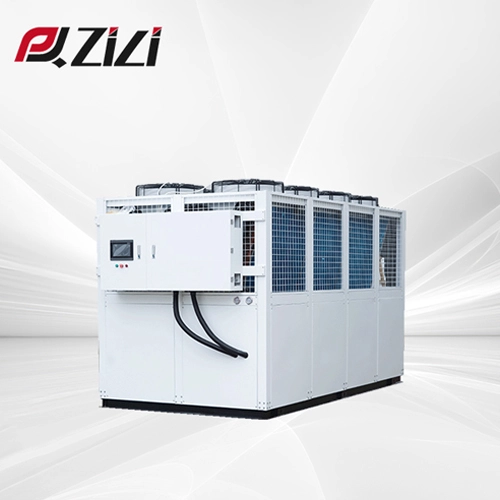

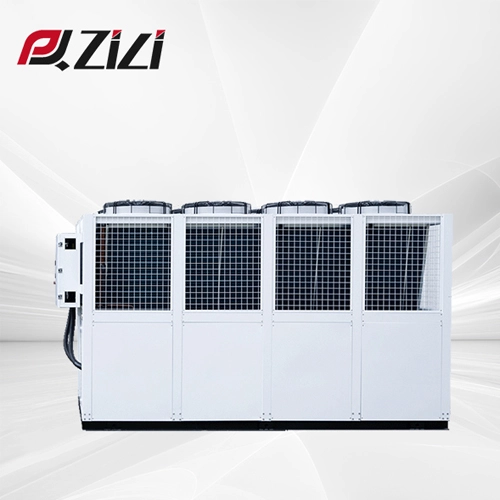

Air water cooled 50HP 40ton central chiller.
Accept the customized needs of customers and propose reasonable solutions.
The weld of brass pipe is non-oxidization.
Cooling capacity up to 126170Kcal/H.
Adopted the latest generation PLC controller to realize precision control of the unit, ensuring efficient and stable running.
Choose hanbell compressor small vibration,low noise can achieve four section capacity adjustment(25%/50%/75%/100%).
Punp computer board, (low failure rate/good stability/durable/easy maintenance).France Schneider electrical accessories. international export chiller standard safety protection device.
PLC controller, responsive, precise temperature control 土1℃,RS485 communication function can be customized for automatic remote management.
Multi-row cooling copper pipe, heat dissipation area increased by 90%, with external rotor fan.The heat dissipation effect is greatly improved.
