Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty-five business days.
The 60HP water-cooled screw machine is shockingly listed, which can meet the basic cooling needs, and can customize evaporators of different materials to achieve the purpose of cooling and improve production efficiency.
| Model | Product name | PQ-ZL60S |
| Power Consumption | Voltage | 3N/380V/50Hz/60Hz |
| KW | 45 | |
| Cooling Capacity | Kcal/H | 170280 |
| KW | 196 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Fill Volume(KG) | 36 | |
| Compressor | Brand | HANBELL |
| Type | Semi-Hermetic Screw Compressor | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Input Power(KW) | 41 | |
| Frozen Oil | Type | HBR-B08 |
| Fill Volume(L) | 8 | |
| Condenser | Form | Shell and Tube |
| Cooling Water Flow(M³/H) | 40 | |
| Water Pipe Diameter(Inch) | PT3″ | |
| Evaporate | Form | Shell and Tube |
| Chilled Water Volume(M³/H) | 33 | |
| Inlet/Outlet (G) | PT3″ | |
| Circulating Pump | PowerConsumption(KW) | 4 |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1500 |
| Dimension（CM） | 250*80*155 |

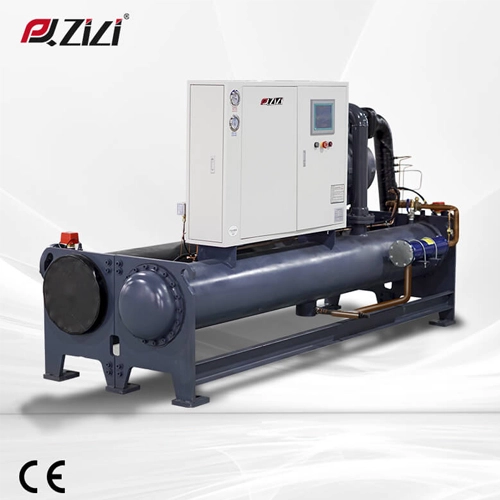

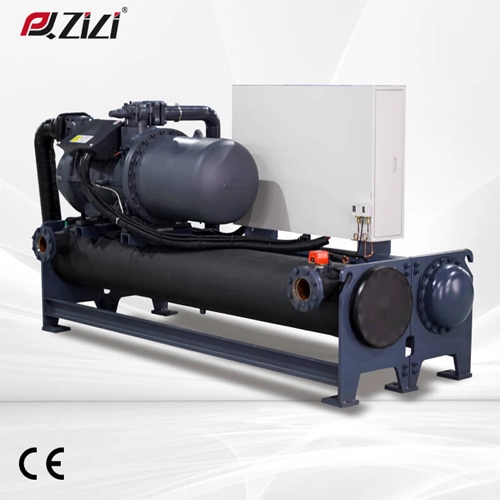

60HP screw chiller unit, various models are available.
Cooling capacity up to 196KW.
3-phase power monitoring and safety protection
The high-quality screw compressor has good power balance and no unbalanced inertial force. The machine can work smoothly at high speed and realize baseless operation.
Fully enclosed water flow switch cuts off the compressor current to protect the freezer and the entire system from damage.
Accept customized service.
High-efficiency filter to prevent compressor clogging and prolong product life.
Shell and tube condenser, made of high-efficiency external threaded copper tube, large heat dissipation, compact structure, high efficiency and energy saving.
