Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Twenty five business days.
There is no need to install cooling tower cooling water pumps and other equipment, and it is suitable for areas where water resources are scarce and water quality is poor. It can be installed in open-air places such as roofs and roofs without a dedicated machine room, saving space.
| Model | Product name | PQ-ZL675A(60Tons) |
| Power | Voltage | 3N/380V/50HZ |
| Power Input | KW | 69 |
| Cooling Capacity | Kcal/H | 187500 |
| KW | 210 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R407C |
| Control Method | Expansion Valve | |
| Compressor | Type | Semi-Hermetic Screw Compressor |
| Brand | Hanbell | |
| Start Model | Y-△start | |
| Capacity Control(%) | 0-25-50-75-100 | |
| Power(KW) | 57 | |
| Draught Fans | Air Volume（M³/H) | 60000 |
| Power（KW） | 0.9*6 | |
| Dimension Fans（MM） | 630*6 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Tube and Shell Evaporate | Type | Shell and Tube |
| Water Volume(L/Min) | 500 | |
| Inlet/Outlet (DN) | 80 | |
| Circulating Pump | Power(KW) | 7.5 |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 1950 |
| Dimension（CM） | 2780*1900*2350 |

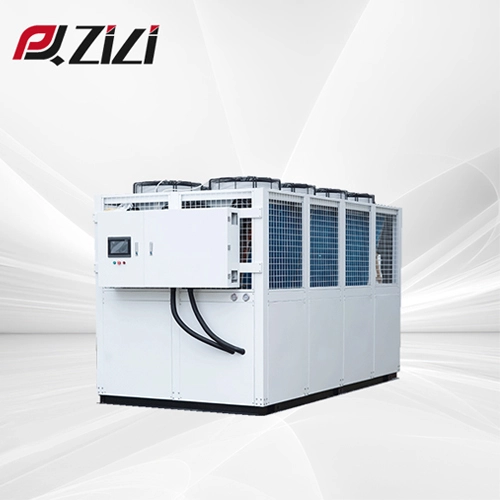

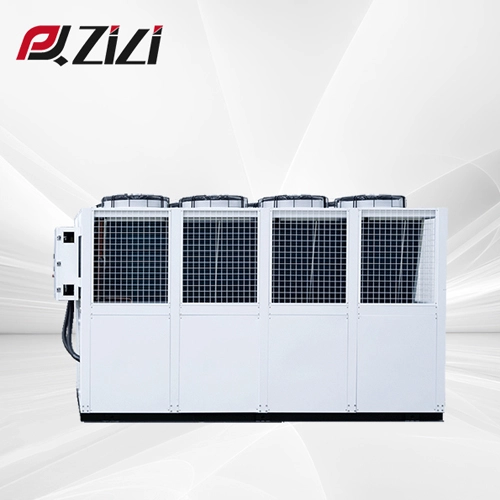

Air water cooled 60HP 50ton central chiller.

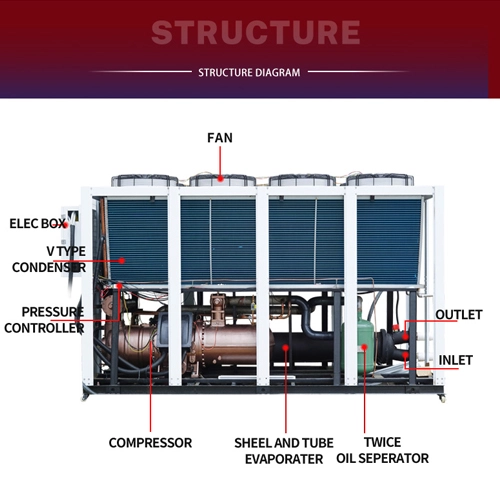

Shell and tube evaporator adopts high-precision internal threaded copper tube design with larger heat exchanging area for higher efficiency and maximizing system performance.
Cooling capacity up to 187500Kcal/H.
Compressor brand is Hanbell.
High quality brand refrigeration parts, stable quality.
High efficiency, low noise, low vibration.
Chinese and English operation interface, menu prompts, can set the operating status of the unit arbitrarily, and the operating environment of home appliances.
The evaporator has compact structure, stable performance, small cooling loss and good cooling effect.
Provide customized services.
When the whole machine leaves the factory, it has been debugged by the unit and completed regular operation, which can reach the state of on-site use.
