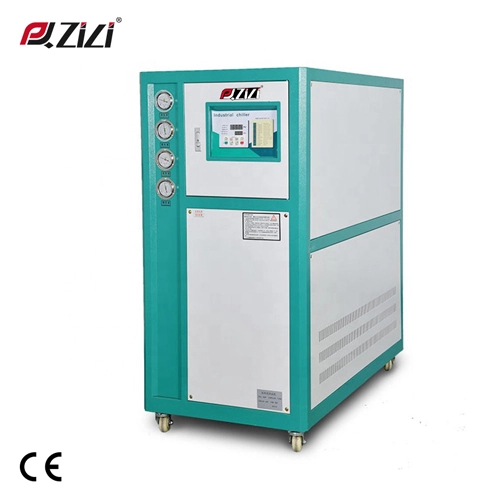

What Is a Water-Cooled Chiller, and How Does It Work?

A water-cooled chiller is a device that can cool water to the desired temperature. This type of machine is essential in many industrial, commercial, and medical fields. This article will provide a detailed introduction to the structure, working principle, advantages, and applications of water-cooled chillers, hoping to provide you with valuable information.

Structure of Water Cooled Chiller

A water-cooled chiller mainly consists of the following components: compressor, condenser, expansion valve, evaporator, and control system. Among them, the compressor is the core component, whose function is to compress the low-temperature, low-pressure refrigerant into high-temperature, high-pressure gas, allowing it to release heat in the condenser. The condenser is used to cool the high-temperature, high-pressure gas into high-pressure liquid. The expansion valve serves to expand the high-pressure liquid into low-temperature, low-pressure liquid so that it can absorb heat in the evaporator. The evaporator cools the water to the required temperature through heat exchange between the refrigerant and water. The control system is used to monitor and control the operation of the entire system, ensuring the system works properly.

Working Principle of Water Cooled Chiller

The working principle of a water cooled chiller is similar to that of a general refrigeration cycle system and is divided into two parts: the refrigeration cycle and the water cycle.

Refrigeration cycle: The compressor draws in low-temperature, low-pressure refrigerant, compresses it into high-temperature, high-pressure gas, and sends it to the condenser. In the condenser, the refrigerant exchanges heat with external air or water, releasing heat, causing the refrigerant to turn into a high-pressure liquid. Then, the high-pressure liquid expands into low-temperature, low-pressure liquid through the expansion valve, entering the evaporator.

Water cycle: In the evaporator, the refrigerant exchanges heat with water, causing the water to change from a high-temperature state to a low-temperature state. The refrigerant absorbs the heat from the water and turns into low-temperature, low-pressure gas in the evaporator. The low-temperature, low-pressure gas re-enters the compressor, starting the next round of the refrigeration cycle.

Advantages of Water Cooled Chiller

Compared to the air cooled chiller, the water cooled chiller has the following advantages:

1. Higher cooling efficiency The cooling efficiency of water-cooled chillers is higher than that of air-cooled chillers. Since water has better thermal conductivity than air, the temperature of the refrigerant can be reduced more quickly in water-cooled systems, thereby improving cooling efficiency. Moreover, water-cooled systems can operate in a wider temperature range, suitable for high-temperature, high-humidity environments.

2. Lower noise In comparison to air-cooled chillers, water cooled chillers have lower noise levels. This is because water cooling can isolate the noise within the water cooling system, reducing the machine's vibration and noise.

3. Higher reliability Water-cooled chillers can work more reliably in harsh environments due to water cooling. In special conditions such as high temperature, high humidity, dust, and high altitudes, the water cooling system can better maintain the refrigerant's stable temperature, thereby improving the machine's operating efficiency and reliability.

4. More flexible cooling methods Water-cooled chillers can use various cooling methods, such as cooling towers and cooling plates, allowing the selection of the most suitable cooling method based on actual needs to achieve optimal cooling effects.
