Huizhou PengQiang, service-oriented, provide one-stop service, Ships within Five business days.
Industrial chillers are widely used in mold cooling, machine tool cutting fluid cooling, electroplating, ultrasonic cooling, chemical solution cooling, electrolytic thermal polishing cooling, sublimation cooling, etc.; also used in high-frequency heating machines, CNC drilling and milling machines, machining centers, Laser processing equipment, grinding machine, heating furnace molecular pump, vacuum coating, magnetic fixture, laser welding machine, printing machine, packaging machine, foaming machine, plastic machinery, bottle blowing machine, rubber machine, high frequency welding machine, Special cooling for extruder, three-roll machine, tail sealing machine, and other mechanical equipment.
| Model | Product name | PQ-ZL0.8L |
| Power | Voltage | 1N/220V/50hz |
| Power Supply(KW) | 1.145 | |
| Cooling Capacity | Kcal/H | 1438 |
| KW | 1.673 | |
| Temperature Range | ℃ | 5℃~30℃（± 0.3 ℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | GREE | |
| Power(KW) | 0.685*1 | |
| Draught Fans | Power（KW） | 0.09 |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin |
| Evaporate | Water Tank Volume(L) | 16 |
| Inlet/Outlet (DN) | 1/2″ | |
| Water Pump | Water Flow(L/MIN) | 33 |
| Power(KW) | 0.37 | |
| Convey Water（M） | 24~30 | |
| Brand | Auyuan | |
| Whole Machine | Net Weight（KG） | 48 |
| Dimension（CM） | 41.3*40*87.1 |
Cooling capacity up to 1438 Kcal/H
304 stainless steel water tank with stainless steel evaporator,unti-corrosion,water pollution.
Stainless steel water PUMP.
Domestic top 10 circuit board brands, stable performance and durable.

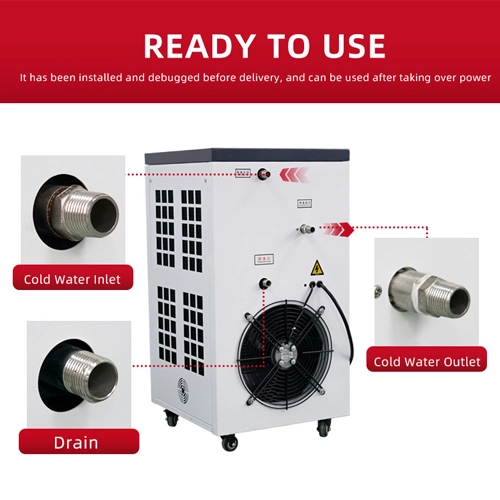

It has been installed and debugged before delivery, and can be used after taking over power.
Low watt density heater for optics circuit.
The internal pipeline layout is reasonable, effectively reducing energy consumption.
After industrial modeling design, the appearance is beautiful and the relationship between man and machine is optimized.
