Laser chiller is a special kind of chiller, which is specially used for laser cutting products.
Lasers are a necessary tool for a variety of industrial engraving applications. Generally, lasers can be used on a variety of materials, including wood, glassware, acrylic resin, and leather.
This precise, high-intensity cutting can often emit a lot of heat in a short period of time.If the temperature is not controlled all the time, the high heat may cause damage to the product itself during production. A portable chiller is an effective means of achieving optimal temperature control when using industrial lasers.

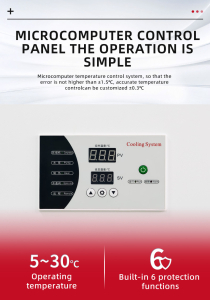

Generally, the temperature of 5℃~30℃ is enough to meet the needs of daily production. The laser chiller produced by our company is equipped with a microcomputer control panel, which can adjust the temperature at any time according to the production needs, and can run 24 hours a year.
If there are special requirements, we can also customize the temperature required by customers.

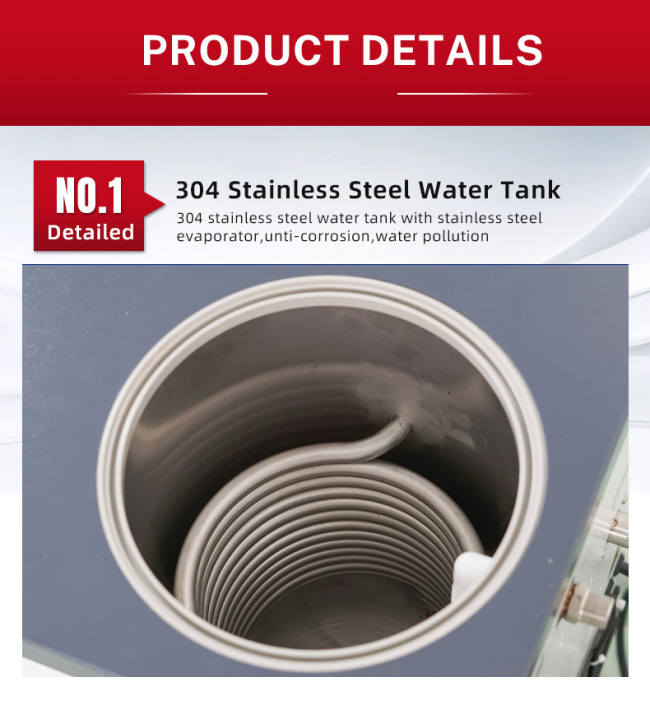

304 stainless steel water tank with stainless rice evaporator, no corrosion, water pollution, long life, good quality, sufficient cooling capacity, can be used for a long time.

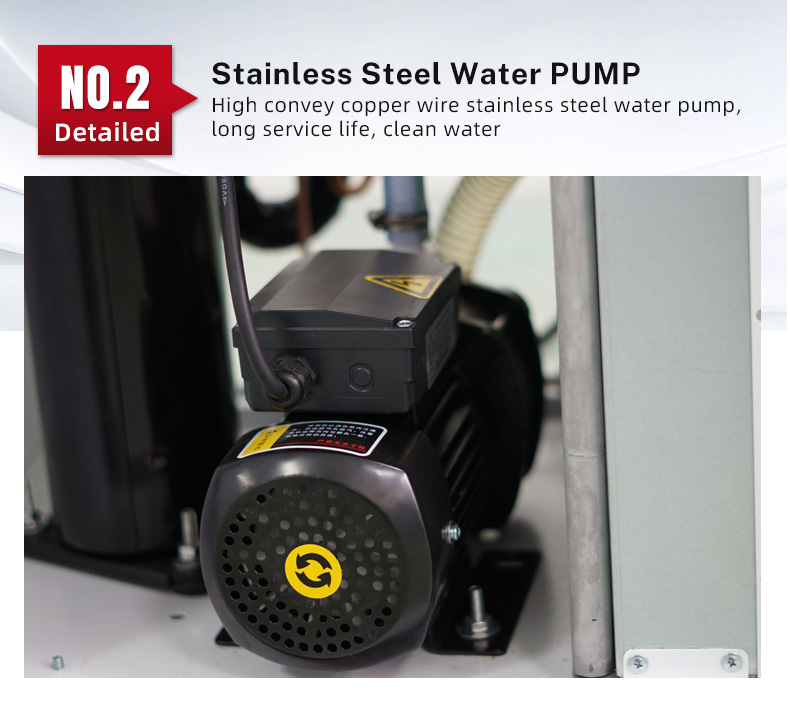

Our laser chiller is equipped with a copper wire stainless steel water pump, which has a long service life, and the stainless steel material will not rust, ensuring clean water quality.
Laser engraving tools are often simple and portable or more than one, which requires the machine chiller to have extremely high portability and mobility.
Our laser chillers are not high in horsepower, which can not only meet the cooling needs of laser equipment, but also be convenient to move, and meet the heat dissipation needs of multiple heat dissipation points and the needs of mobile laser machines.
All the refrigeration equipment produced by our company are equipped with 6 major alarm systems to ensure the safety of the machine and users, facilitate users to check the machine in time, and reduce maintenance costs.
We have already mentioned at the beginning of the article that in the industrial production of laser engraving, the heat emitted is very high.
If the high temperature is not dealt with during the production process, it will increase the failure rate of product production, and uncontrolled heat will also cause damage to laser equipment, and often the price of laser production equipment is not cheap. The use of laser chillers can greatly reduce the risks caused by production.
Our company produces various types of laser chillers to meet the different needs of customers.
| Model | Product name | PQ-ZL0.6L | PQ-ZL0.8L | PQ-ZL01L | PQ-ZL1.2L | PQ-ZL1.5L | PQ-ZL02L |
| Power | Voltage | 1N/220V/50hz | |||||
| Power Supply(KW) | 0.745 | 1.145 | 1.21 | 1.345 | 1.743 | 2.213 | |
| Cooling Capacity | Kcal/H | 1307 | 1438 | 2107 | 2494 | 3440 | 4712 |
| KW | 1.52 | 1.673 | 2.45 | 2.9 | 4 | 5.48 | |
| Temperature Range | ℃ | 5℃~30℃（± 0.3 ℃ Could be customized） | |||||
| Refrigerant | Name | R22(Or R134a/R407c) | |||||
| Control Method | Capillary Tube | ||||||
| Compressor | Type | Hermetic Scroll Type or Piston Compressor | |||||
| Brand | GREE | ||||||
| Power(KW) | 0.605*1 | 0.685*1 | 0.75*1 | 0.885*1 | 1.23*1 | 1.7*1 | |
| Draught Fans | Power（KW） | 0.055 | 0.09 | 0.09 | 0.09 | 0.143 | 0.143 |
| Condenser | Form | Efficient Brass Sets Coorrugated Aluminum Fin | |||||
| Evaporate | Water Tank Volume(L) | 11 | 16 | 16 | 22 | 22 | 24 |
| Inlet/Outlet (DN) | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | 1/2″ | |
| Water Pump | Water Flow(L/MIN) | 15 | 33 | 33 | 33 | 33 | 33 |
| Power(KW) | 0.085 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |
| Convey Water（M） | 7~10 | 24~30 | 24~30 | 24~30 | 24~30 | 24~30 | |
| Brand | Auyuan | ||||||
| Whole Machine | Net Weight（KG） | 37 | 48 | 56 | 63 | 70 | 80 |
| Dimension（CM） | 47*38*58.9 | 41.3*40*87.1 | 41.3*40*87.1 | 50*47*90.5 | 50*47*90.5 | 55*50.5*97.2 | |
| 6 Safety Protections | Compressor Overheat Protection | High & Low Voltage Fault Alarm | Cryogenic Anomaly Alarm | Pump Overload Protection | Earth Leakage Protection | Phase Reverse Protection | |

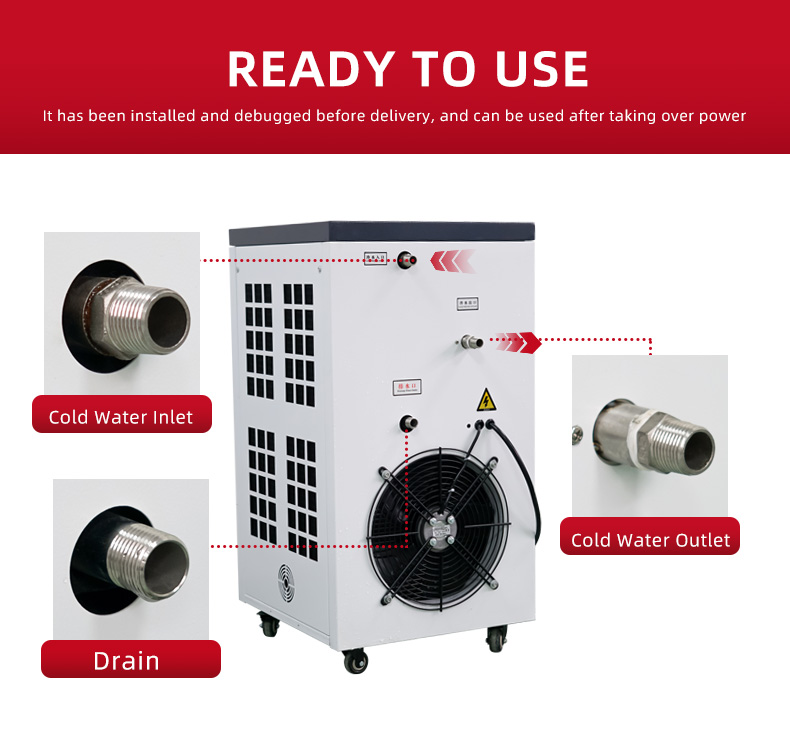

If you wish to optimize the cooling of your laser production equipment, laser chillers are the best choice. Our laser chillers are built to the highest manufacturing standards while being easy to install and maintain, just plug them in and they're ready for use.
If the cooling capacity of the laser chiller cannot meet your needs, our company also has other types of chillers to choose~
The above is the specific introduction and usage scenarios of the laser chiller. To learn more about the laser cutting machine industrial chiller, you can contact us.
